The GTIL2-LCD Grid Tie Power Inverter with LCD display is the world’s most technologically advanced inverter for use in utility-interactive applications. This integrated system maximizes energy harvest, increases system reliability, and implifies design, installation and management.
You can use this 2nd generation GTIL2-LCD grid tie inverter with Solar Panel [SUN] or Battery [BAT] (DC), Wind turbine [WDL] (DC) and Wind turbine 3 phase [WAL] (AC) input type with configurable 10-30 / 22-60 / 45-90 V input voltage range. The output voltage is pure sine wave auto selected AC 110 / 220 V and 50 / 60 Hz with possible 1000 / 2000 W output power version. Supports it limiter for control the amount of power, dump load controller and resistor for the wind turbine and WiFi plug module for online monitoring.
The small type solar and wind grid tie power inverter can obtain the solar energy from solar panel (DC) and wind turbine (DC or AC), and can tie to the grid through its output cables with no extra equipment. The installation is very convenient and reliable.
We call the system combining with small solar grid tie inverter and solar panels as SGPV. The system includes solar panels and small type grid tie inverter and installation kit. Solar panels can be mono silicon, polygon silicon, non-crystal film or any other material that can transform solar energy to electric energy. The power of grid tie inverter should be matched to the power of solar panels connected. So the power of SGPV is defined by its solar panels, it can be standardization according to the actual using.
The inverter can be connected to any outlets of utility grid at house. The small grid tie inverter monitors the volume, frequency and phase of the home utility grid, then produce pure sine wave AC power that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid. The small grid tie inverter just puts out power when the home grid is on.
When the sun shines, the PV panel will produces DC voltage, and the grid tie inverter will change the DC voltage to AC voltage and puts out power to the home grid. When the total power of electric apparatus that are using in the house is larger than the output power of the inverters, these power from the inverters will be consumed in the house, this will slow down the power meter, otherwise, the difference of the output power of the inverter between the total used power of the apparatus will go out from the house to the out grid.
We call the system combining with small grid tie inverter and wind turbine as SGWT. The system includes wind turbine and small grid tie inverter and installation kit, and some SGWT also will include controller, dump load resistor.
The inverter can be connected to any outlets of utility grid at house. The small grid tie inverter monitors the volume, frequency and phase of the home utility grid, then produce pure sine wave AC power that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid. The small grid tie inverter just puts out power when the home grid is on.
When the wind turbine is rotating, and the output of the voltage is in the range of the rated input voltage of the inverter, the wind turbine will produces power, and the grid tie inverter will change the power from wind turbine to the home grid. When the total power of electric apparatus that are using in the house is larger than the output power of the inverters, these power from the inverters will be consumed in the house, this will slow down the power meter, otherwise, the difference of the output power of the inverter between the total used power of the apparatus will go out from the house to the out grid.

There are many advantages of SGPV compare with the traditional grid tie power system.

1. Low cost and easy installation - SGPV can make full use of all types of buildings’ surface that face to the sun in the city as well as fast and easy installation of solar modules and grid tie inverter. It just needs very low maintenance costs.
2. Free combination - SGPV can be used as a separate grid tie system and can be setup as a large solar array with many of them. The quantity of SGPV in the array is just according to your desire. If you are planning to install a grid-tie PV system, in a general way, the solar array and inverter need to be carefully matched to ensure that the inverter’s voltage and power limits are not exceeded. When you want to increase more solar panels, and if the total power of the solar panels exceeds the allocation grid inverter, it is necessary to increase the cost of a grid inverter.
3. Combination of SGPV does not interact - The traditional solar grid tie system, they offer units ranging in high power output and these units are modular so you can have multiple units operating in parallel for large solar arrays. Although, the traditional grid inverter has MPPT feature (Maximum Power Point Tracking), but the maximum power point is according to the entire series in terms of solar panels array, if the performance of a piece of solar panels in the system, for some reason, such as leaves, bird droppings, dust, shadow, etc. and degrades, the performance of the entire solar power system will decrease.
   SGPV has no such disadvantage. If the performance of a piece of solar panels in the system degrades, this just effects this piece itself, will not affect other SGPV in the system.
4. Improving the efficiency of the entire solar power system – In traditional grid tie system, the solar panels are connected in series, so the MPPT of the inverter is according to the total panels in series, not to every panel, but there is difference between every panel, so not every panel is working at the maximum power, this will reduce the total power of these panel in series.
   But SGPV has no such disadvantage. Because every inverter of SGPV has MPPT function, so every panel is working at the maximum power, this will increase the efficiency of the entire system.
5. Low power consumption – Most of the parts in the small grid-tie inverter are digital ICs and low power MCU, so the power consumption of it is low, though the quantity of grid tie inverters is increased, but this will not increase the power consumption much of the entire system.

Inverter LCD Display Instruction

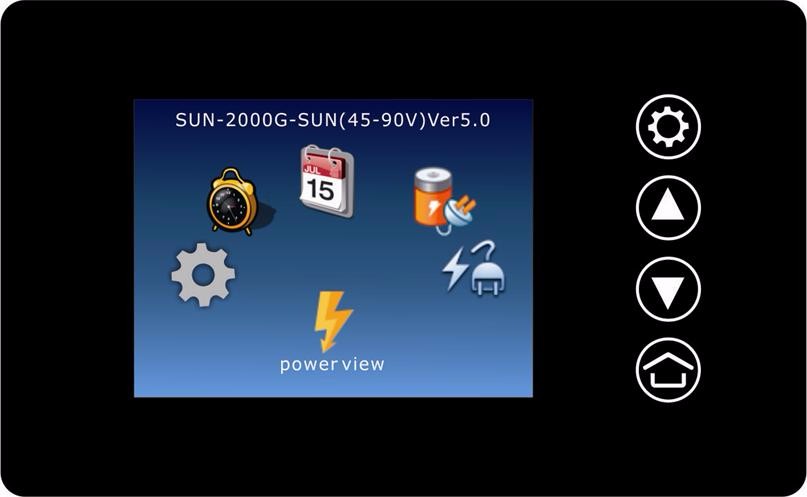

The Inverter display can show many information, the main interface of the display and the icons explainations are show above. Nice LCD Display showing different parameters vivid and enable varity settings.

• Set Menu: Choose the set menu icon on the main screen interface, click the confirm button to enter into the interface show below. In this interface can set the LCD backlight always on or auto turn off backlight after 3 minutes no action.
  The inverter also integrate with internal limiter and external limiter function which can prevent excess power from going to the public grid. Select the internal limiter mode, inverter will work under limiter mode, output power of the inverter will be determined by load power. Select the external limiter mode, inverter need a external limiter module working with it. For more details about the limiter function, pls see below. (This function only useful with limiter type inverter.)
  Battery Discharge Current Mode And Battery Discharge Power Mode see below.
  (Notes: Save the setting after you reconfigurate the working mode or backlight setting.)
• Grid Waveform: This interface will show the real time grid waveform. The grid voltage and frequency also will show in this interface.
• Energy Menu: The energy interface will show the power generation curve everyday. Today KWH and Total KWH are also show in this page.
• Power View: In this interface the display shows real time power, PV input voltage, inside temperature, date and time.
• Clock And Date Setting: Set the clock and date in this page, save the setting before exit.

Why we produced the Grid Tie Inverter with Limiter?

It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to insignificant levels, if not eliminated - because in some countries, the producer pays for the excess power it gives to the distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will be charged for power even if it is given to the grid, and this is the problem. This problem solved this 2nd generation grid tie inverter with limiter.
With the 2nd generation GTIL, we integrated the limit function inside the GTI - we call this internal limiter. In this way, no additional limiter module is needed, reduced customer’s cost, more easier for installation. But in case customer install inverter far away from the main circuit breaker, we also enable the 2nd GTIL work with stand-alone limiter, we call this-external limiter. For sure, the inverter can work under normal Grid tie - no limit mode, just set on the nice LCD and save your setting. Summary if you do not want to sell electric power, you will need a limiter type inverter.

Simple installation:
The Grid Tie inverter converts DC power produced by Solar Panels to AC, connects to the grid and feed all of the power available from the panels to the AC load.
All excess power that is not needed by the load is then exported to the Grid.
If the Grid fails, then the Grid Tie Inverter will turn off. When the Grid comes back on line. The Grid Tie Inverter will again supply power to the load and any excess power is exported to the Grid again.
If the Solar Panel is producing less power and the GTI cannot deliver all the power needed by the load, then power will be supplemented by the Grid.
Power Meters (Except smart meter) are not aware of the direction of Power flow. The user then pays for the power exported and delivered by the Grid.

Using Grid Tie Inverter with Limiter Model:
The Grid Tie Inverter with Limiter delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid.
The heart of the Grid Tie Inverter with Limiter is the Limiter Module (LM). The LM continuously sampled the power needed by the load through the current sensor connected after the Main Circuit Breaker. The LM then will process the signal. It then sends signal to Grid Tie Inverter how much power to deliver to the load in real time.
The user, after installing and connecting the GTIL correctly, need not do anything and the unit will do its work automatically.

Limiter Setting on the LCD of the inverter:
The GTIL include three working mode:

• work as normal GTI without power limitation
• work under Internal limiter mode
• work under External limiter mode

Pls make your setting on the LCD and save it, details setting operation, pls read the GTI manual.
If the distance of meter clam sensor and inverter is too long, you will need the External Limiter. (Note: The external limiter is not included in package.)

Installation of GTIL with Internal Limiter:
This installation is not require an additional limiter module, installation is much easier. Clamp the current sensor cable to the hot wire to measure the current, the internal limiter will auto detect the load power and control the inverter output power, excess power will be well controlled.
External protective device including dc and ac SPD (Surge protection device), DC and AC breaker, etc. is recommended to installed in the system.

Limiter Module Specification:

• Clamp sensor: max 100 A
• Wattmeter: 9999 W
• Terminal Block: max 20 A
• Receptacle: max 2000 W
• Clamp sensor signal: 5 V AC max ?? mA
• DC signal Cable: 5 V DC max ?? mA

Battery Discharge Power Mode:
New upgraded firmware enable battery or solar limiter current and power model.
User can set the maximum output power of inverter, this can make the inverter work at cooler contition as user want and extend the lifespan of the inverter.
User can set kick in/off voltage of the inverter which can flexible using with battery bank depend on users mind and can prevent battery bank from over discharged.

WiFi plug module
Optional, but can order only together with inverter, connected by RS-232 with RS-485 protocol for Web (https://shinemonitor.com/index_en.html) and Mobile Phone App (https://shinemonitor.com/appDownloadEn.html#iossmartclient) online monitoring.

• simple configuration (etc by SmartLink application https://shinemonitor.com/appDownloadEn.html#iossmartlink)
• WPA/WPA2 encryption
• support network with hidden SSID.

Why to choose GTIL2-LCD grid tie inverter?

• Advanced patented 2nd generation technology, MPPT efficiency is higher.
• High-quality imported components, more stable quality, lower failure rate. Significantly longer life, more than 10 years.
• Low cost and easy installation.
• Much better output waveform compare with similiar GTI.
• Free combination.
• Combination of SGPV and SGWT does not interact.
• Improving the efficiency of the entire solar or wind power system.
• Low power consumption.
• Directly connect to three phase wind turbine (WAL).
• Build in dump load function (only by wind turbine).
• Build in Limiter (internal type).

Technical Data

• Circuit Topologies: Half-Bridge Type

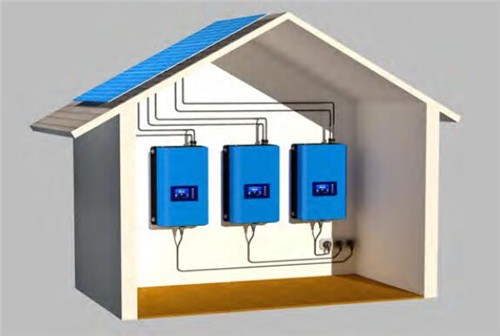

• More than 1 unit inverters can stackable by AC output
• Continuous Power Output: 980 / 1950 W
• Peak Power Output: 1000 / 2000 W
• Input DC Voltage Range: 10-30 / 22 - 60 / 45 - 90 V
• Peak power tracking voltage: 25 - 60 / 50 - 90 V
• AC Output Voltage Range: 90 - 140 / 190 - 260 VAC (auto selected)
• Output Frequency: 50 / 60 (46 ~ 65) Hz (auto selected)
• Output Current: 10 A
• Standby Power Consumption: < 0.5 W
• Total Harmonic Distortion (THD): < 5 %
• Peak Inverter Efficiency: 92 %
• MPPT Efficiency (PF): 99 % (advanced patented 2nd generetion technology, MPPT efficiency is higher)
• Power Factor: 0.99
• Output Wave Form: Pure Sine Wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Short-circuit Protection: Yes
• Reverse Polarity Protection: Yes
• Anti-Island Protection: Yes
• Stackable: Yes (more than 1 unit inverters can stackable by AC output)
• Certification: CE, ROHS, ISO9001, CCC
• Weight: 4 / 6 kg
• Dimensions (W x H x D): 322 / 434 x 196 x 88 mm

Opcionálisan:
Bemenet típusa:
Napelem [SUN] vagy Akkumulátor [BAT] (DC)
Szélturbina [WDL] (DC)
Szélturbina 3 fázisú [WAL] (AC)
Bemeneti feszültség:
10-30 V
22-60 V
45-90 V
Kimeneti feszültség:
AC 110/220 V (automatikus)
Kimeneti teljesítmény:
1000 / 2000 W

Rendelhető tartozékok:

• (Belső) Limiter funkció with clamp sensor (opcionális, de csak az iverterrel együtt rendelhető)
• Dump load controller and resistor (only by Wind turbine)
• WiFi modul (opcionális, de csak az inverterrel együtt rendelhető)

A HaiLin vadonatúj HL2028 terméke egy Android és iOS okostelefonnal kényelmesen és egyszerűen vezérelhető WiFi-s elektromos padlófűtés termosztát, mely egyedülálló a maga nemében! A modern, teljesen fekete és egy speciális HaiLin Key vezérlőgombbal rendelkező felület vizuális megjelenésével egy teljesen új, magával ragadó és lenyűgöző, üdítő színfoltot jelent a termosztátok hagyományos palettáján!
A HL2008 sorozat tagjai egy független, mikroprocesszor alapú vezérlővel és LCD kijelzővel rendelkező speciális termosztátok,  légkondicionálók, bojlerek, keringető szivattyúk, szelepek, vagy éppen elektromos fűtőberendezések kapcsolására/vezérlésére tervezve. Széles modellválasztékkal a 2, illetve 4 csöves légkondicionálók, fűtő és szellőztető berendezésekhez.

Leheletnyi - Fuvallat - Pillekönnyű

The imnovatrion of "Breath" is to concern more on product design and application emotion, it more tocus on producr life, interface between user and thermostat, intelligent control, operation and brand new visual experience to realize "comfortable life is so simple".

• Life
  "Breath" pays more attention on people's feeling. It completely gets rid of the cold, isolated propertues trom industrial products, and its fresh life characteristics brings more kind, real interactive experience to people. "Green" is more concerned about people's feelings, completely out of the industrial cold, isolated feature, which features live the life of the body and people have a more intimate and true interactive experience.
• Being
  Waiting. "Breath" arise from your exactly being, it integrates the latest infrared sensing teclmology, which can automatically detect approach of the human body and active the themmostat as your arival. Because of your presence "green movement" into the latest infrared sensor technology to automatically detect the body close, with your arrival automatically.
• Breath
  "Breath" breathing button flashing will not disturb you, but always remind you to make energy saving by yourself. As you breathe and the "Green", the quietly waiting reflecting the atmosphere does not bother you, but I remind you, to let you know that "voluntary action energy" on the side.
• Touch
  "Breath" become living along with your touching, it adopts the latest capacitance touch pad technology, easy to operate. Your touch and by the "green movement", using the latest technology capacitive touch buttons, release your finger to maximize free space, easy functions.
• Simple
  Easy. Always believe simple is the beginning of emotion. "Simple" is exactdy to be the core value of "Breath". You may easily manage the indoor temperature completely through one-key touch, realize the energy saving and comforrable. Because of your simple "green movement", this is the beginning of all emotion, you can easily through a button touch adjust the indoor temperature to achieve comfort and energy saving.
• Black
  Black shows dignity, elegant and mystery, which reveals the natural feature. The early life of black, noble, elegant and mysterious, highlighting the natural qualities.
• Green
  Germ of life, with pure, fresh natural energy. Budding life, with a fresh and clean energy.

Tulajdonságok:

• Nagyméretű LCD kijelző kapacitív érintőgombokkal
• Piktogram ikonok a kijelzőn
• Egyarcú megjelenés
• Erõs zöld fény, jelképezve az élet csíráját, illetve ritmusát minden egyes lélegzetvétel között
• Idő kijelzés
• Infravörös közelség érzékelő (mint okostelefonoknál)
• HaiLin Key, one touch energy saving
• One-key design - simplified energy saving and comfortable
• Keypad lock to avoid any mistake operations
• Egyszerű telepítés
• Könnyű kezelhetőség
• A WiFi kapcsolat egyszerű beállítása
• Pursue the balance point between comfortable life and high energy saving efficiency by intelligent way
• Help customers reduce energy consumption by professional service
• Unprecedented elegant ultra slim design, top grade, fashion
• Slight curve - incorporate soft and strength
• Entire black, honourable and elegant
• Szoba/helyiség hőmérséklet érzékelése és kijelzése
• Built-in temperature sensor and/or outer (optional) temperature sensor (for measurement temperature of floor)
• Intelligens fűtésszabályozás
• Programmable 7 days 4 periods (one week is divided into 7 days with four periods in each day)
• Self-learning function (thermostat Breath would gradually "learn" your habits during your usage, and automatically programming schedule to pre-cool or pre-heat, default is disabled)
• WiFi + Android and iOS platform application
• ECO energiatakarékos üzemmód (18 °C)

Technikai jellemzők:

• Modell: Breath
• Típus: elektromos padlófűtés termosztát
• 60 × 64 mm LCD képernyő
• Működtetés: érintőképernyő
• Háttérvilágítás funkció: 6 másodperc
• Temperature-sensitive element: NTC Thermistor 100K
• Temperature accuracy: 1 °F or 0.5 °C
• Temperature display accuracy: 1 °F or 0.5 °C
• Temperature Display: Fahrenheit or Celsius degree
• Temperature Settings: 5 ~ 35 °C
• The display range: 0 ~ 55 °C
• Differential: 2 °F or 1 °C (be corrected)
• Working environment: 0 ~ 45 °C
• Humidity: 5 ~ 95 % RH (non-condensing)
• Press the button: capacitive touch buttons
• Since power consumption: < 2 W
• Supply voltage: AC 85 ~ 260 V, 50 / 60HZ (green move DA2 / DB2 / FCV2)
• Thermostat output: SPST Relay
• Lifetime: thermostat contacts 100,000 times
• Wiring: screw-in terminals, each terminal capable of accepting 16 AWG, 18 AWG, 1.5 or 2.5 mm wires
• Load current: maximum 16 A
• Installation Box hole pitch distancel: 60 mm (standard)
• Mounting: Embeded mounting, standard 86 × 86 mm junction box (hole pitch 60 mm)
• The outer shell enclosure: PC + ABS fire flame retardant
• Védettség: IP 30
• Minősítés: CE
• Méretek: 86 × 86 × 13 mm (Szé × Ma × Mé)

1975 óta, a régi SANYO márkanév alatt, és 2012 óta a jelenlegi Panasonic néven, ez a jól ismert gyártó minőségi napelem modulokat gyárt az egész világ számára. Ez a Panasonic 43 éves szakértelme és tapasztalata a napelemek kutatásában, fejlesztésében és gyártásában. A HIT® (heterojunkciós) technológiával a Panasonic több mint 20 éves terméktapasztalattal rendelkezik, és folyamatosan javítja termékeit. A napelemek között kiválóan szerepel a Panasonic eredeti találmánya, a heterojunkciós napelem. Európában több mint 3 millió panelt értékesítettek, kevesebb, mint 0,0035 % hibaaránnyal (2017 január óta).
A Panasonic legújabb napeleme a HIT N330/N325. Ez a napelem a lehető legmagasabb teljesítményt nyújtja, elérve a 330/325 Wattot, mindössze 1,67 m2 felületen. 160 cm-nél rövidebb mérete ellenére 25 %-kal több kimenő teljesítményt nyújt, mint a hasonló méretű, 265 Wattos hagyományos napelem társaik.
Kerete anódos és fekete, mely sarok-víztelenítéssel biztosítja a napelemek tisztaságát egész évben, valamint egységes, vonzó megjelenést biztosít a tetőn.
18 év alatt több mint 1 milliárd értékesített napelem cellával, és több mint 40 éves napelemes tapasztalatával a Panasonic valóban 25 éves garanciát tud nyújtani Önnek.

Miért Panasonic?

• 40 év gyártási tapasztalat (Japán, USA, Magyarország, Malaysia)
• Világbajnok 25.6 % cella hatásfok!
• 1 milliárd legyártott napelem cella
• 100 %-os minőség, eredeti Panasonic cellákkal
• Teljesítmény megtartása 11 év működés után (TÜV Rheinland mérés)
• Garantáltan 80 %-os kimeneti teljesítmény 25 év élettartam után
• 10 év alatti meghibásodási ráta Európában kevesebb mint 0.005 %
• 2017-től 25 év GYÁRTÓI GARANCIA regisztrálás esetén

Több energia négyzetméterenként a HIT napelemekkel

A HIT napelem modulok szerkezete nemcsak innovatív, hanem a hagyományos mintáktól is eltér. Nagyobb hatékonyság elérését jelenti a cellákban, így több energia négyzetméterenként. Továbbá minőségi anyagai tartósságot biztosítanak a HIT™ napelemek számára. Így nagyobb megbízhatóságot kap, amelyet 25 év garancia garantál.

19.1 % modul-hatékonyság

Nagyobb kimenet és alacsonyabb specifikus telepítési és rendszer-egyensúlyi költségek elérése, mint ugyanolyan számú 60 cellás modulnál. A Panasonic napelemek rendkívül jól felszerelt napelemek, nagy hatékonysággal és az egyedülálló méretekkel.

Több energia, nagyobb nyereség

Segítséget nyújt a magasabb végső nyereség eléréséhez napelem rendszerénél.

Panasonic garantált

IEC és több mint 20 Panasonic belső teszt
Függőlegesen integrált saját gyártás (szelet, cella és modul)

Alacsony hibavalószínűség

Kevesebb, mint 0,005%-os hiba több mint 10 éves tapasztalat után.

Egyszóval: Nagy hatékonyság + Nagy teljesítmény magas hőmérsékleten = Nagy teljesítményű generáció

Panasonic VBHN 320 KJ01 előnyei

• Függőlegesen integrált belső gyártás (szelet, cella és modulok)
• 96 db 5 hüvelykes HIT cellasejtek
• -0/+10 % pozitív teljesítménytűrés
• PID-mentes (Fraunhofer Intézet által tesztelt)
• Ammónia-rezisztens csatlakozó doboz
• 25 éves termékgarancia
• 25 éves lineáris teljesítmény garancia

Termékjellemzők

• Pmax: 320 Wp (csúcsteljesítmény)
• Vmp: 57,6 V
• Imp: 5,65 A
• Voc: 69,6 V
• Isc: 6,03 A
• 19.1 % modul hatékonyság
• Teljesítményhőmérséklet-együttható -0,258 % / ° C
• Heterojunkciós monokristályos szilícium és amorf vékony film cellák, melyek erős és szórt fényben (felhős időben) is jól teljesítenek!
• Teljesen fekete dizájn
• Egyedi vízelvezetés
• SMK csatlakozás
• 5400 Pa hóterhelés és szélterhelés
• Méretek (Ho×Szé×Mé): 1590 × 1053 × 40 mm (mindössze 40 mm vastagság)
• Tömeg: 19 kg

Részletes műszaki adatok.

1975 óta, a régi SANYO márkanév alatt, és 2012 óta a jelenlegi Panasonic néven, ez a jól ismert gyártó minőségi napelem modulokat gyárt az egész világ számára. Ez a Panasonic 43 éves szakértelme és tapasztalata a napelemek kutatásában, fejlesztésében és gyártásában. A HIT® (heterojunkciós) technológiával a Panasonic több mint 20 éves terméktapasztalattal rendelkezik, és folyamatosan javítja termékeit. A napelemek között kiválóan szerepel a Panasonic eredeti találmánya, a heterojunkciós napelem. Európában több mint 3 millió panelt értékesítettek, kevesebb, mint 0,0035 % hibaaránnyal (2017 január óta).
A Panasonic legújabb napeleme a HIT N330/N325. Ez a napelem a lehető legmagasabb teljesítményt nyújtja, elérve a 330/325 Wattot, mindössze 1,67 m2 felületen. 160 cm-nél rövidebb mérete ellenére 25 %-kal több kimenő teljesítményt nyújt, mint a hasonló méretű, 265 Wattos hagyományos napelem társaik.
Kerete anódos és fekete, mely sarok-víztelenítéssel biztosítja a napelemek tisztaságát egész évben, valamint egységes, vonzó megjelenést biztosít a tetőn.
18 év alatt több mint 1 milliárd értékesített napelem cellával, és több mint 40 éves napelemes tapasztalatával a Panasonic valóban 25 éves garanciát tud nyújtani Önnek.

Miért Panasonic?

• 40 év gyártási tapasztalat (Japán, USA, Magyarország, Malaysia)
• Világbajnok 25.6 % cella hatásfok!
• 1 milliárd legyártott napelem cella
• 100 %-os minőség, eredeti Panasonic cellákkal
• Teljesítmény megtartása 11 év működés után (TÜV Rheinland mérés)
• Garantáltan 80 %-os kimeneti teljesítmény 25 év élettartam után
• 10 év alatti meghibásodási ráta Európában kevesebb mint 0.005 %
• 2017-től 25 év GYÁRTÓI GARANCIA regisztrálás esetén

Több energia négyzetméterenként a HIT napelemekkel

A HIT napelem modulok szerkezete nemcsak innovatív, hanem a hagyományos mintáktól is eltér. Nagyobb hatékonyság elérését jelenti a cellákban, így több energia négyzetméterenként. Továbbá minőségi anyagai tartósságot biztosítanak a HIT™ napelemek számára. Így nagyobb megbízhatóságot kap, amelyet 25 év garancia garantál.

19.4 % modul-hatékonyság

Nagyobb kimenet és alacsonyabb specifikus telepítési és rendszer-egyensúlyi költségek elérése, mint ugyanolyan számú 60 cellás modulnál. A Panasonic napelemek rendkívül jól felszerelt napelemek, nagy hatékonysággal és az egyedülálló méretekkel.

Több energia, nagyobb nyereség

Segítséget nyújt a magasabb végső nyereség eléréséhez napelem rendszerénél.

Panasonic garantált

IEC és több mint 20 Panasonic belső teszt
Függőlegesen integrált saját gyártás (szelet, cella és modul)

Alacsony hibavalószínűség

Kevesebb, mint 0,005%-os hiba több mint 10 éves tapasztalat után.

Egyszóval: Nagy hatékonyság + Nagy teljesítmény magas hőmérsékleten = Nagy teljesítményű generáció

Panasonic VBHN 325 SJ47 előnyei

• Függőlegesen integrált belső gyártás (szelet, cella és modulok)
• 96 db 5 hüvelykes HIT cellasejtek
• -0/+10 % pozitív teljesítménytűrés
• PID-mentes (Fraunhofer Intézet által tesztelt)
• Ammónia-rezisztens csatlakozó doboz
• 25 éves termékgarancia
• 25 éves lineáris teljesítmény garancia

Termékjellemzők

• Pmax: 325 Wp (csúcsteljesítmény)
• Vmp: 57,6 V
• Imp: 5,65 A
• Voc: 69,6 V
• Isc: 6,03 A
• 19.4 % modul hatékonyság
• Teljesítményhőmérséklet-együttható -0,258 % / ° C
• Heterojunkciós monokristályos szilícium és amorf vékony film cellák, melyek erős és szórt fényben (felhős időben) is jól teljesítenek!
• Fekete eloxált alumínium keret
• Egyedi vízelvezetés
• SMK csatlakozás
• 2400 Pa hóterhelés és szélterhelés
• Méretek (Ho×Szé×Mé): 1590 × 1053 × 35 mm (mindössze 35 mm vastagság)
• Tömeg: 18.5 kg

Részletes műszaki adatok.

Small Power Grid Tie Inverter 500W (15 - 60 VDC input and 190 - 260 VAC output)

Grid tie inverter is a device which directly converts direct current into alternating current whose sine wave, frequency and phase are the same as power grid and then feed it into utility grid.
It is a key device of power generation systems such as PV power generation system, wind turbine power generation system.It is a key device of power generation systems such as PV power generation system, wind turbine power generation system.
The Grid tie inverter specially optimizes design to work with modularization of DC power supplies which includes the mainstream solar modules, 36V (72 cells) monocrystal.
wind turbines and batteries. Stable, reliable and of high conversion efficiency, it is best choice for PV power generation systems.
The Grid tie inverter can be easily placed and attached to the rack underneath of PV module. It does not need spaces for independent installation and low voltage DC wire connects from the PV module to Smart Microinverter.

Suitable for 30V / 36V solar panels, or 24V / 48V battery grid power generation; Make sure Voc of solar panel is within 24~38V / 44~46V.
Specific design for 24 V (60 cells) and 36 V (72 cells) PV module; but also suitable for 24 / 36 / 48 V battery and small wind turbine system with built-in AC-DC charging controller which’s output voltage is 24 / 36 V.
15 - 60 VDC Wide input voltage, classification processing for different input voltages from different DC power supplies.
Multi-LED indicators, attractive appearance.

Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.
Creative MPPT technology, efficiency more than 99%, faster reaction, more sensitive of reaction and more reliable of Maximum power point locking.
Parallel modular design, small volume, distributed installation, easy for system configuration, flexible for conbination, strong expansibility of system.
Adopting high-frequency isolation transformer type, high efficiency, high security.
Perfect electrical protection function.
Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.
Getting electronic circuit design, appearance design and other core technology patents.

Fetaures:
Input voltage range: 15 - 60 VDC
AC output: 190 - 260 V
Power Output: 500 W
Matched solar panels / Compatible with 36 V (72 cells) solar modules which Vmp is 35-39V and as Voc is 42-46V
Very easy to install (plug and play): Directly connected to the solar panels (do not have to connect the battery)
Pure Sine Wave Output
High-Frequency High Conversion Rate
Power Automatically Locked (APL)
Maximum Power Point Tracking (MPPT): Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable
Automatically Adapt To Different Load Power Factor
Stack Multiple Machines: Multiple small power inverters in parallel by AC output can achieve large output power. In order to achieve higher power use requirements, this product can be stacked, such as: 5 grid inverter 500W stacking can achieve 2500 W. And the number of the stacking is unlimited.
Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.
Adopting high-frequency isolation transformer type, high efficiency, and high security.
Perfect electrical protection function.
Getting electronic circuit design, appearance design and other core technology patents.
Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.
Constant Current, Constant Power
Islanding protection: When the city power system is in failure, the inverter will automatically turn off the output within 0.5 seconds.
Current Limit Protection
Parallel type design for DC input and modularization design for inverter, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.
Weight: 1.15 kg
Dimension: 21X16.5X5.7CM
Dimensions 8.66 in x 6.46 in x 2.13 in (22 cm x 16.4 cm x 5.4 cm)
Weight 46.6 oz (1321 g)

Packing and weight
Net weight 1.3kg
G weight 2.0kg
Size (L x W x H) 21 x 16.5 x5.3cm
Package (L x W x H) Inner box:34x25x15.5CM Carton : 51x37x33CM 6PCS/Carton
Installation Wall hanging
AC power cord length 1.8m
Cooling Fan

System Function
 Wide voltage input(15-60VDC）
Achievewide voltage input.
1、DC voltage input：15-60VDC
2、Second level powervariable voltageconversion
 High-frequency two-way andone-way grid function
1、 High frequency direct modulation, AC half wave synthesis
2、 Two-way grid means: Load consumedirectly. And can reverse AC currenttransmission.
3、 One-way grid means: Load consume directly. And banned reverse AC current transmission.
 Kinds of frequency output function.
It can applyto 50Hz and 60Hz frequencyof AC.
Frequency range: 45Hz ~ 63Hz
 AC 0 angle with high precision auto-detection
AC phase angle of 0 through isolation amplifierthen input to the MCU for high-precision detection and analysis.
The phase shift rate is less than 1%, thus achieve high-precision with phase modulation AC output together.
1、 ACphase shift: < 1%
2、 Over-zero protection: 0.2 VAC
Synchronous High-frequency Modulation
In the process of the grid, usually adapt the same phase angle in parallel. (ie, When the two-phase alternating
current total is equal to 0.Use switch to combination the two AC fusion) and the product is rectified AC
half-frequency AC to 100Hz first, then the machine use the high frequency current in the circuit and
semi-100Hz frequency alternating current generated combination, to achieve high-frequency modulation.
1、 Modulation synthesis: half wave and full-bridge modulation synthesis (100Hz / 120Hz)
2、 Synthetic way: MOSFET full-bridge
3、 High frequency: 50KHz
Pure Sine Wave Output
Use SPWM directly to make pure sine wave output.
1、Output waveform: Adopt complementary PWM to push-pull pure sine wave.
2、Generate means: enhancement-modeSPWM
 Automatic Sensing Function Solar Luminosity
Use the latest luminosity perception operation technology. The different illuminate angle and intensity of the
solar panel will produce different current output. Use advanced CPU to operate the different illuminance and the
data can be directly displayed on the LCD. Then you can visually see the sense of the strength of the sun unit.
Used more convenient.
1、 Luminositysampling point ：power sampling point
2、 High precision AD sampling: integral AD sampling method
Power Automatically Locked (APL)
In different current fluctuations, we should use the MPPT function. When the MPPT function adjusted to the
maximum power point, the product automatically powers locked in maximum power point, then made the
output power more stable.
1、Power lock: The biggest sampling point of MPPT.
Automatically Adapt To Different Load Power Factor
Adapt to any of the power load.
 Constant Current, Constant Power
This product is constant current, constant output power, without any overload, over-current phenomenon.
- 3 -GWV Grid Series
3
 Automatically Shut Down When The Power Output Of a Fault
When the city power system is in failure, the inverter will automatically turn off the output.
Current Limit Protection
Current limit
 Stack Multiple Machines
 Multiple small power inverters in parallel can achieve large output power.
 High-Frequency High Conversion Rate
Adapt high frequency converter, the output more efficient.
 Maximum Power Point Tracking (MPPT)
Current intensity, voltage constantly changes, if there is no power point tracking, then there will be a lot of
problems in the past usually adopted a solar controller, this product uses high-precision MPPT computing power,
automatic and immediate to solar panels output power adjustment in the maximum output point, in order to
achieve a stable output purposes.
Parameter Table
SY -GWV Grid-series models 500Watt
Recommend use solar panels 36V/550Wp
DC MAXinput current 50A
AC MAXoutput power 530Watt
DC MAX Open-circuit input-voltage 100VDC
DC input voltage range 15~60VDC
MAX output power factor >98%
DC input Reverse voltage protection FUSE
AC output voltage range 120V versions：90~140VAC
AC frequency range 120VAC 60Hz
Output current totalharmonic distortion THDIAC <3%
AC Phase <1%
Islanding protection VAC；f AC
Output short circuit protection Current- limiting
Show
LED mode：power instruction；voltage instruction；
AC frequency instruction；over-voltage instruction
Standby Power <1W
NightPower <1W
Ambient temperature range -25 ℃~65℃
Humidity 0~99%(no Dew)
Waterproof Indoor Type Design
Electromagnetic Compatibility EN50081.part1 EN50082.part1
Power System Disturbance EN61000-3-2 EN62109
Network test DIN VDE 1026
Certificate CE
Fire prevention level(PCB) 94 V0
DC TO AC Conversion efficiency >85%

Installation Connection
1. Red terminal: Connect DC positive, black terminal: Connect DC negative.
2. AC socket: Connect to the mains. Put the side of the AC cord which has holes into the inverter with 3 foot outlet and the other side of the AC cord to home 3PIN AC outlet.
3. Switch: Connect the connections in right way, then turn on the switch. The inverter starts to work.

Input and output
1、DC input limit
 Input voltage range: 15V to 60V
Solar Panel: Recommend using the power more than 500W and the standard voltage of 36V PV panels.
If use othertypes of solar panels, For example:18V solar panlar:
 Wind turbine system: Rated voltage 24VDC, maximum voltage 60VDC.
 storage battery: A, 12V*3=36VDC(or 12V*4=48VDC) Three groups series connection.
B, 24V*2=48VDC(or 24V+12V=36VDC
2、AC output：
 Voltage range of the inverter whose output is 220VAC.: 190V -260V，50Hz&60HZ
 Voltage range of the inverter whose output is 110V AC.: 90V -140V，50Hz&60HZ
5、LED Indicator：
- 7 -GWV Grid Series
7
1、Red LED：
1、Low-voltage protection (input DC voltage is less than 15VDC).
2、High-voltage protection (InputDC voltage is greater than 60VDC).
3、FAULT: Power grid failure or inverter their own fault.
4、Power output display: Follow the inverter power output size flow flashing quickly or slowly.
2、Green LED：
1、AC voltage display: Display the power grid voltage.
125VAC: 90VAC-140VAC
230VAC: 190VAC-260VAC
2、AC frequency display: Display the power grid frequency.

Notes
---Non-professionals do not disassemble. Only qualified personnel may repair this product.
---Please install inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and
clear around the inflammable and explosive materials.
---When using this product, avoid children touching, playing, to avoid electric shock.
---Recommended Maximum DC input 4AWG cable capable of handling more than 50A of the
cable size.
---Optimal length of the DC input line 1.8M or less, long cable will allow solar panels to the inverter
DC voltage drop caused by wear and tear.
---Connected to a power outlet to provide AC.
---Connected solar panels, battery or wind generators DC input DC power supply cable.
---Proposed wind power plant with its own charge controller and load dump.

Packing List
1 x Inverter
1 x English user manual
1 x EU plug power cable (150cm)
